ISX031_GMSL2 oToCAM223-C120M

Name: ISX031_GMSL2 oToCAM223-C120M
Availability: MadeToOrder

ISX031_GMSL2 oToCAM223-C120M

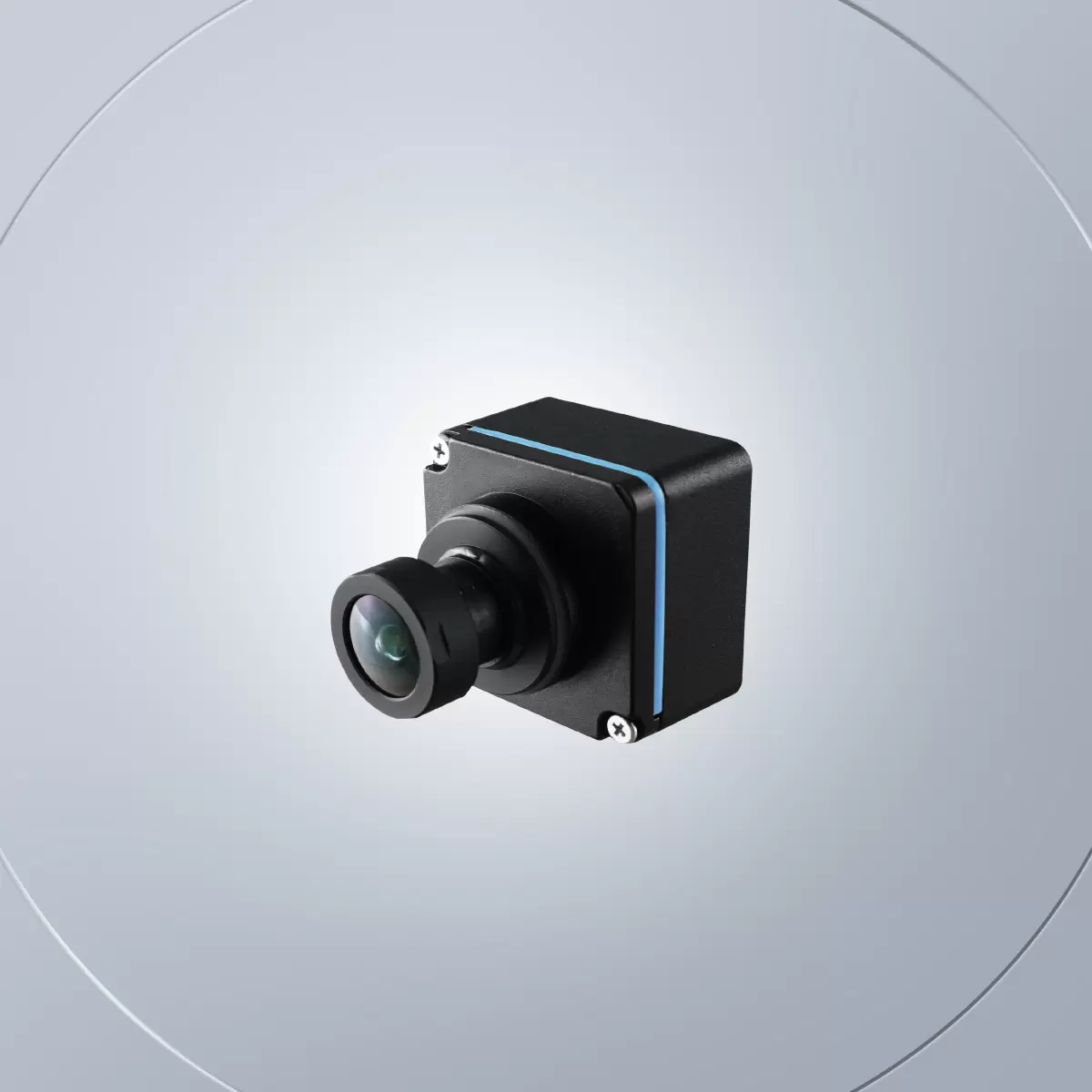

The oToCAM 2MP/3MP resolution series is an automotive-grade camera for the application of autonomous driving system. It uses a high-sensitive CMOS sensor to perform good image quality for the detection purpose of the system product.

Product Features

Robust and durable to withstand extreme environments

oToBrite’s camera modules are built through specialized production processes and rigorously tested to meet IP67 and IP69K standards, ensuring excellent dust and water resistance. These camera modules undergo vibration tests to ensure durability in harsh conditions and feature defogging capabilities to maintain clear vision in humid or rapidly changing environments. These features make the cameras highly reliable in extreme environments, capable of operating at temperatures ranging from -40°C to +85°C. Whether used in desert, mountainous, or wet, humid climates, oToBrite’s camera modules consistently provide stable and clear image output.

Cutting-edge active alignment technology for image precision

oToBrite’s proprietary 5/6-axis active alignment technology significantly enhances optical precision by minimizing the optical axis deviation to just 1 pixel. This ensures that every pixel in the image maintains optimal clarity, delivering superior image quality. By integrating advanced optical design with automated manufacturing processes, this technology achieves unprecedented alignment accuracy, allowing the system to produce sharp and clear images.

Excellent performance with Sony image sensor technology

The ISX031 sensor offers a 1920 x 1536 resolution with 120 dB HDR (high dynamic range), delivering smooth up to 60 fps output. Equipped with Sub-Pixel HDR Technology, it produces sharper and more detailed images of moving objects compared to traditional methods. With built-in LED Flicker Mitigation (LFM) and System-On-Chip (SoC) design, ISX031 is ideal for automotive imaging and monitoring.
