OV9716_TVI oToCAM163

Name: OV9716_TVI oToCAM163
Availability: MadeToOrder

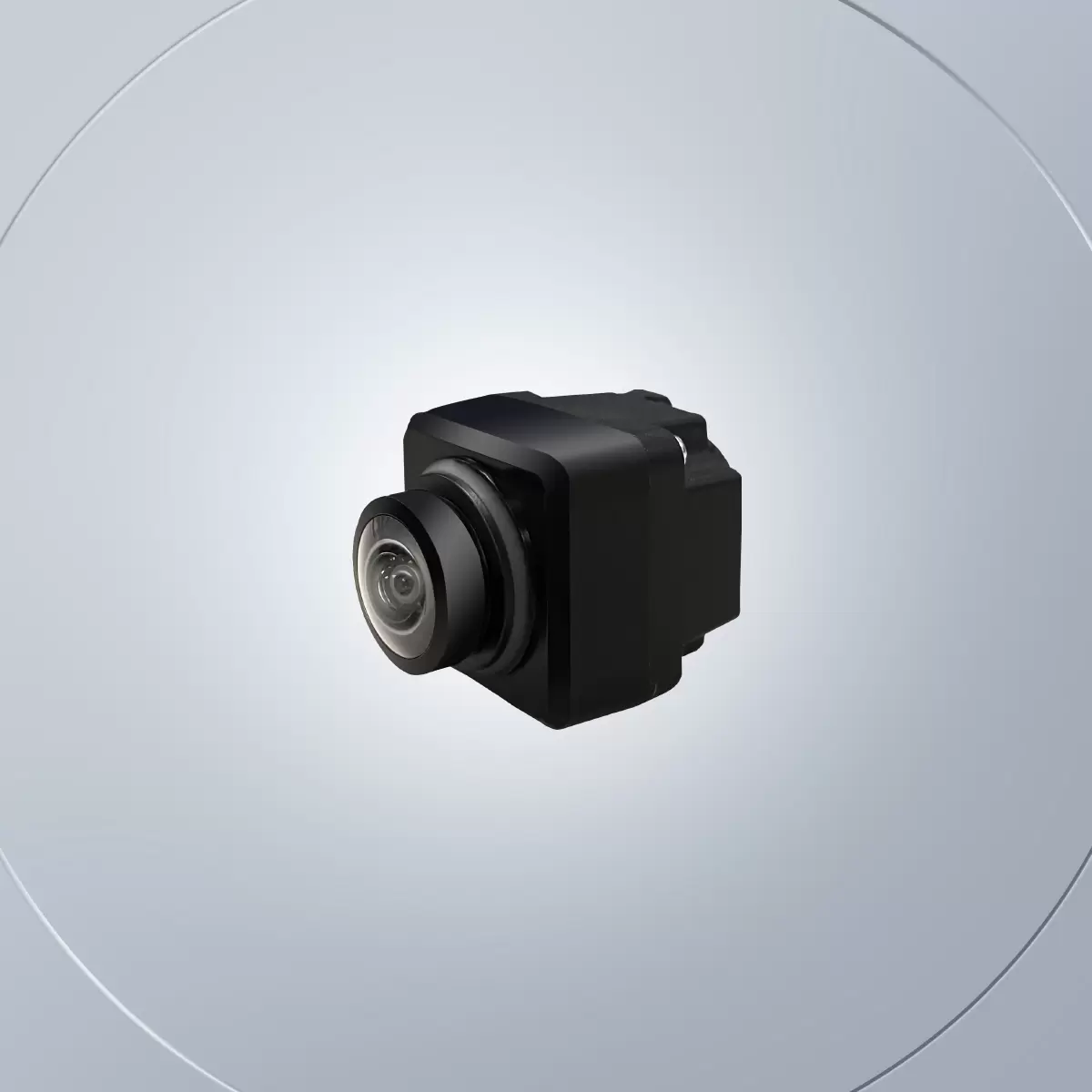

OV9716_TVI oToCAM163

The oToCAM 1MP resolution series is an automotive grade camera for the application of autonomous driving system. It uses high sensitive CMOS sensor to perform good image quality for the detection purpose of the system product.

Product Features

Robust and durable to withstand extreme environments

oToBrite’s camera modules are built through specialized production processes and rigorously tested to meet IP67 and IP69K standards, ensuring excellent dust and water resistance. These camera modules undergo vibration tests to ensure durability in harsh conditions and feature defogging capabilities to maintain clear vision in humid or rapidly changing environments. These features make the cameras highly reliable in extreme environments, capable of operating at temperatures ranging from -40°C to +85°C. Whether used in desert, mountainous, or wet, humid climates, oToBrite’s camera modules consistently provide stable and clear image output.

Cutting-edge active alignment technology for image precision

oToBrite’s proprietary 5/6-axis active alignment technology significantly enhances optical precision by minimizing the optical axis deviation to just 1 pixel. This ensures that every pixel in the image maintains optimal clarity, delivering superior image quality. By integrating advanced optical design with automated manufacturing processes, this technology achieves unprecedented alignment accuracy, allowing the system to produce sharp and clear images.

Excellent performance with OMNIVISION image sensor technology

The OV9716 image sensor offers 1392x976 resolution, supports up to 60 fps, and provides over 120dB dynamic range. Built on 2.8µm OmniBSI™-2 Deep Well™ pixel technology, it enhances low-light sensitivity and delivers HDR (high dynamic range) performance even in challenging lighting conditions. Ideal for rearview and 360-degree automotive systems.
