ISX021_GMSL2 oToCAM222-H61M

Name: ISX021_GMSL2 oToCAM222-H61M
Availability: MadeToOrder

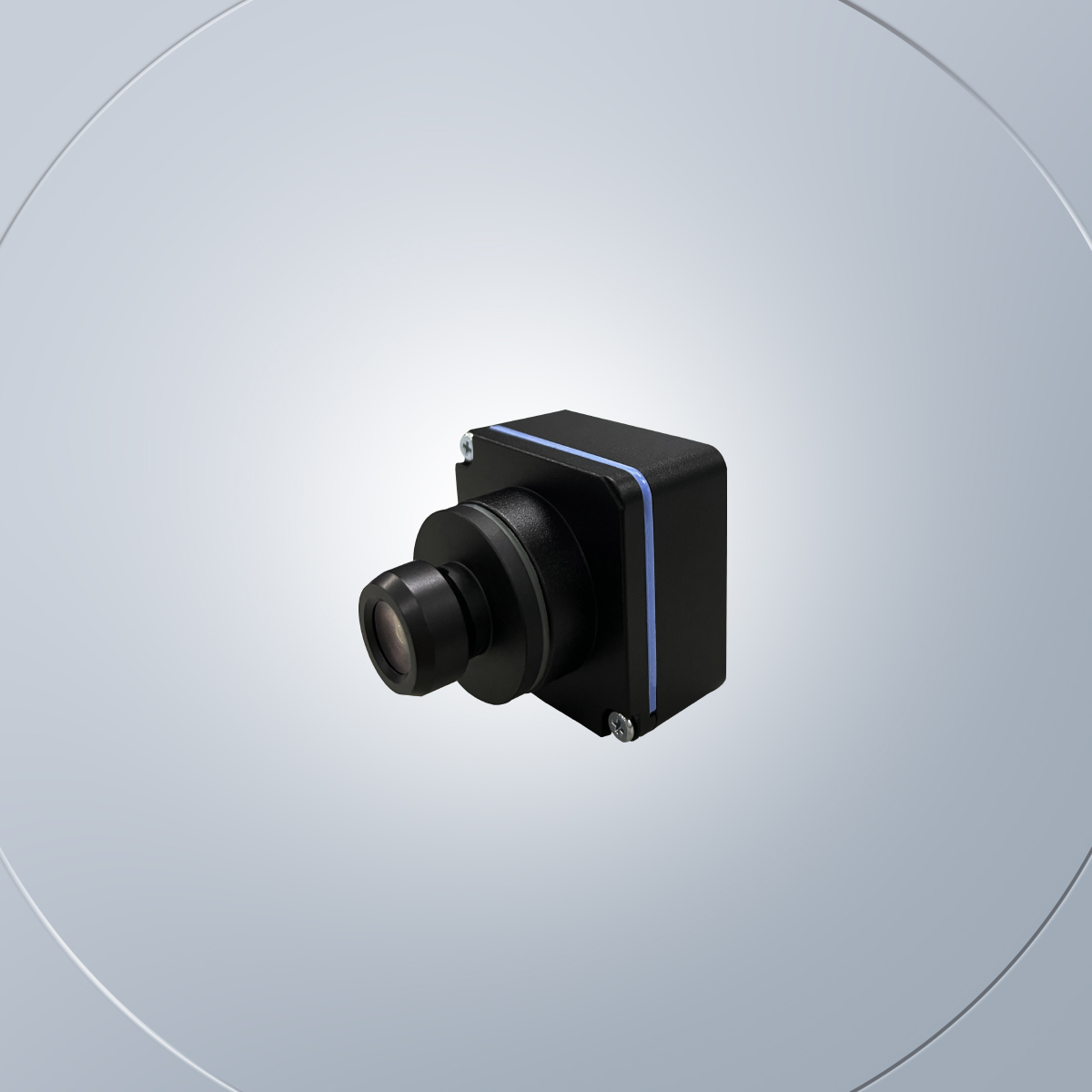

ISX021_GMSL2 oToCAM222-H61M

The oToCAM 2MP/3MP resolution series is an automotive-grade camera for the application of autonomous driving system. It uses a high-sensitive CMOS sensor to perform good image quality for the detection purpose of the system product.

Product Features

Robust and durable to withstand extreme environments

oToBrite’s camera modules are built through specialized production processes and rigorously tested to meet IP67 and IP69K standards, ensuring excellent dust and water resistance. These camera modules undergo vibration tests to ensure durability in harsh conditions and feature defogging capabilities to maintain clear vision in humid or rapidly changing environments. These features make the cameras highly reliable in extreme environments, capable of operating at temperatures ranging from -40°C to +85°C. Whether used in desert, mountainous, or wet, humid climates, oToBrite’s camera modules consistently provide stable and clear image output.

Cutting-edge active alignment technology for image precision

oToBrite’s proprietary 5/6-axis active alignment technology significantly enhances optical precision by minimizing the optical axis deviation to just 1 pixel. This ensures that every pixel in the image maintains optimal clarity, delivering superior image quality. By integrating advanced optical design with automated manufacturing processes, this technology achieves unprecedented alignment accuracy, allowing the system to produce sharp and clear images.

Excellent performance with Sony image sensor technology

The ISX021 sensor delivers a 1920 x 1280 resolution with a wide 120 dB HDR (high dynamic range), supporting smooth 30 fps output. With integrated LFM (LED flicker mitigation) and System-on-Chip (SoC) design, ISX021 is tailored for automotive imaging and monitoring, ensuring clear and stable visual performance.
