ISX019_FPD-Link III oToCAM206-L137T

Name: ISX019_FPD-Link III oToCAM206-L137T
Availability: MadeToOrder

ISX019_FPD-Link III oToCAM206-L137T

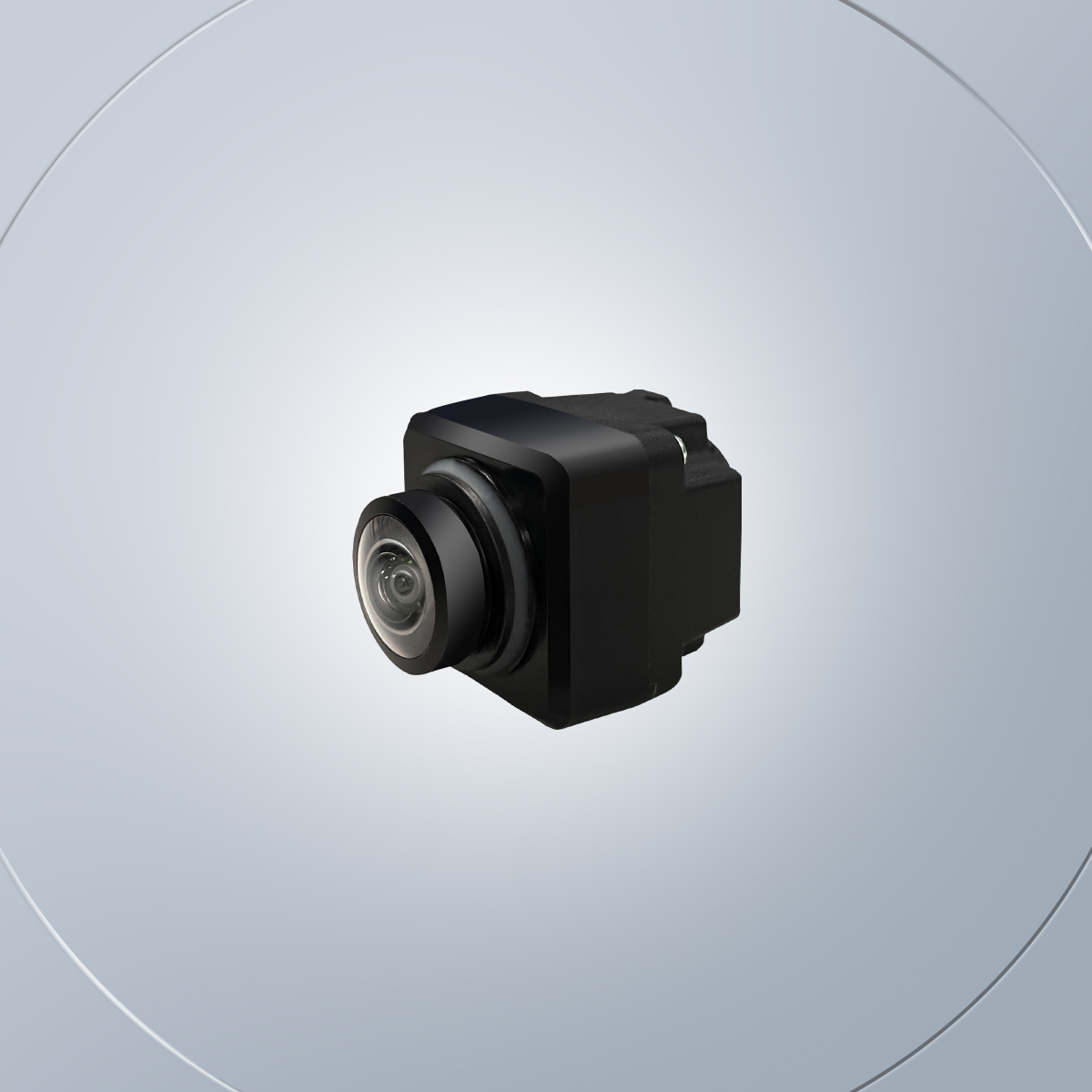

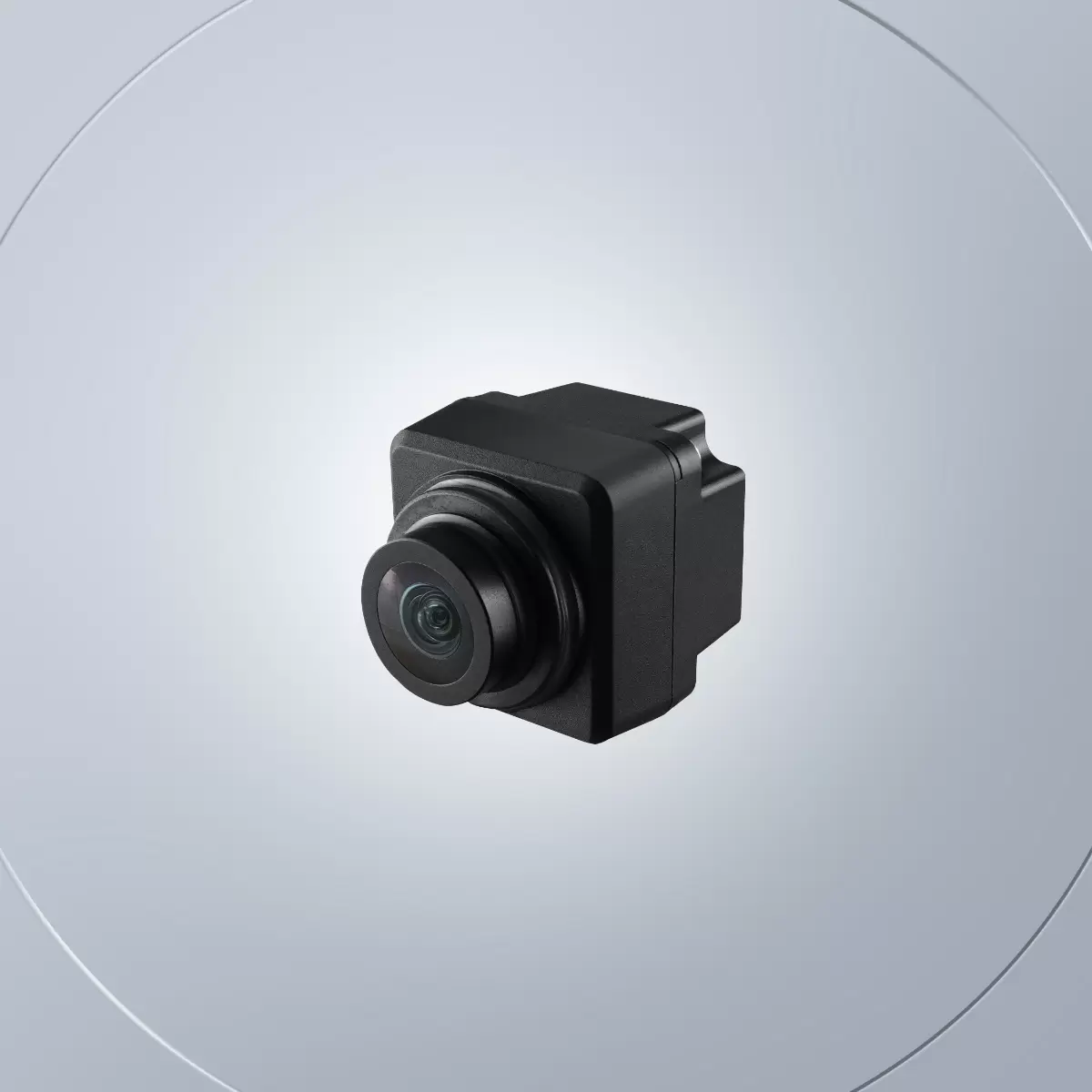

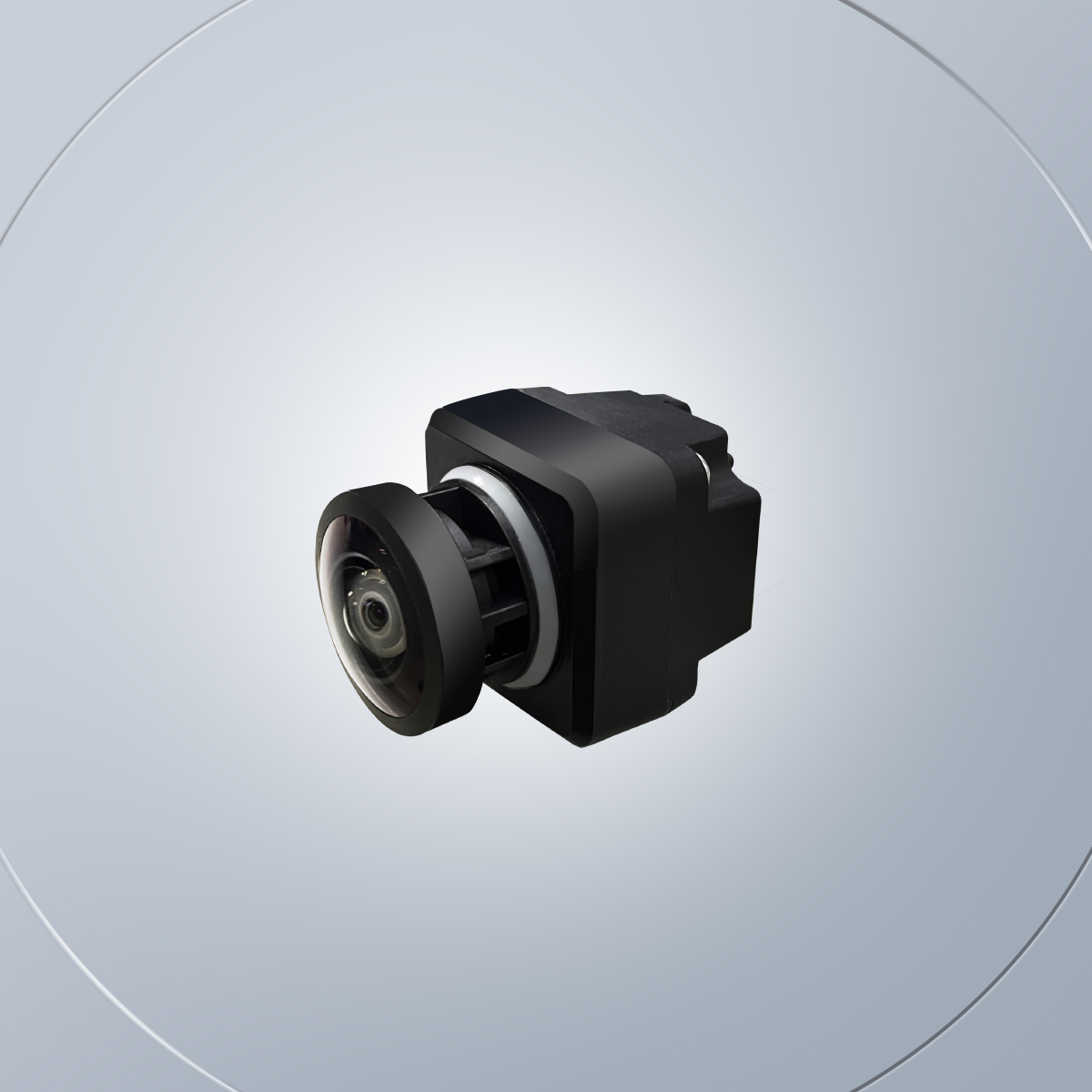

The oToCAM 1MP resolution series is an automotive grade camera for the application of autonomous driving system. It uses high sensitive CMOS sensor to perform good image quality for the detection purpose of the system product.

Product Features

Robust and durable to withstand extreme environments

oToBrite’s camera modules are built through specialized production processes and rigorously tested to meet IP67 and IP69K standards, ensuring excellent dust and water resistance. These camera modules undergo vibration tests to ensure durability in harsh conditions and feature defogging capabilities to maintain clear vision in humid or rapidly changing environments. These features make the cameras highly reliable in extreme environments, capable of operating at temperatures ranging from -40°C to +85°C. Whether used in desert, mountainous, or wet, humid climates, oToBrite’s camera modules consistently provide stable and clear image output.

Cutting-edge active alignment technology for image precision

oToBrite’s proprietary 5/6-axis active alignment technology significantly enhances optical precision by minimizing the optical axis deviation to just 1 pixel. This ensures that every pixel in the image maintains optimal clarity, delivering superior image quality. By integrating advanced optical design with automated manufacturing processes, this technology achieves unprecedented alignment accuracy, allowing the system to produce sharp and clear images.

Excellent performance with Sony image sensor technology

The ISX019 automotive-grade sensor delivers 1280x960 resolution, 120dB HDR (high dynamic range), and LFM (LED flicker mitigation). With SoC (System-on-chip) architecture and back-illuminated pixel technology, it can achieve low power consumption and 60fps with built-in AE/AWB and Super Contrast functions, ideal for ADAS applications.
