車載カメラモジュール
-
home -
製品
製品 -
カメラモジュール
カメラモジュール -
車載カメラモジュール
車載カメラモジュール
車載カメラモジュール
後方カメラ
| 型番 | 解析度 | センサー | 視角 | 出力形式 |
|---|---|---|---|---|
| oToCAM162 | 1MP | ISX019 | 189° | TVI / Differential |
| oToCAM163 | 1MP | OV9716 | 183.6° | TVI / Differential |
| oToCAM204 | 1MP | ISX019 | 189.2° | FPD-Link III |
| oToCAM206 | 1MP | ISX019 | 189° | FPD-Link III |
| oToCAM206-L137T | 1MP | ISX019 | 137° | FPD-Link III |
| oToCAM264ISP-H61M | 2MP / 3MP | IMX390CQV | 63.9° | GMSL2 |
| oToCAM264ISP-N73M | 2MP / 3MP | IMX390CQV | 73° | GMSL2 |
| oToCAM264ISP-C120M | 2MP / 3MP | IMX390CQV | 120.6° | GMSL2 |
| oToCAM264ISP-N186M | 2MP / 3MP | IMX390CQV | 186° | GMSL2 |
| oToCAM264ISP-H61T | 2MP / 3MP | IMX390CQV | 63.9° | FPD-Link III |
| oToCAM264ISP-N73T | 2MP / 3MP | IMX390CQV | 73° | FPD-Link III |
| oToCAM264ISP-C103T | 2MP / 3MP | IMX390CQV | 103° | FPD-Link III |
| oToCAM264ISP-C120T | 2MP / 3MP | IMX390CQV | 120.6° | FPD-Link III |
| oToCAM264ISP-N186T | 2MP / 3MP | IMX390CQV | 186° | FPD-Link III |
| oToCAM264-H61M | 2MP / 3MP | IMX390CQV | 63.9° | GMSL2 |
| oToCAM264-N73M | 2MP / 3MP | IMX390CQV | 73° | GMSL2 |
| oToCAM264-C120M | 2MP / 3MP | IMX390CQV | 120.6° | GMSL2 |
| oToCAM264-N186M | 2MP / 3MP | IMX390CQV | 186° | GMSL2 |
| oToCAM264-H61T | 2MP / 3MP | IMX390CQV | 63.9° | FPD-Link III |
| oToCAM264-N73T | 2MP / 3MP | IMX390CQV | 73° | FPD-Link III |
| oToCAM220-C103T | 2MP / 3MP | IMX390CQV | 103° | FPD-Link III |
| oToCAM264-C120T | 2MP / 3MP | IMX390CQV | 120° | FPD-Link III |
| oToCAM264-N186T | 2MP / 3MP | IMX390CQV | 186° | FPD-Link III |
| oToCAM222-H61M | 2MP / 3MP | ISX021 | 64° | GMSL2 |
| oToCAM222-C120M | 2MP / 3MP | ISX021 | 120.6° | GMSL2 |
| oToCAM222-S195M | 2MP / 3MP | ISX021 | 195.9° | GMSL2 |
| oToCAM222-H61T | 2MP / 3MP | ISX021 | 64° | FPD-Link III |
| oToCAM222-C103T | 2MP / 3MP | ISX021 | 103° | FPD-Link III |
| oToCAM222-C120T | 2MP / 3MP | ISX021 | 120.6° | FPD-Link III |
| oToCAM222-S195T | 2MP / 3MP | ISX021 | 195.9° | FPD-Link III |
| oToCAM223-H61M | 2MP / 3MP | ISX031 | 63.9° | GMSL2 |
| oToCAM223-C120M | 2MP / 3MP | ISX031 | 120.6° | GMSL2 |
| oToCAM223-S195M | 2MP / 3MP | ISX031 | 195.9° | GMSL2 |
| oToCAM260ISP-C62M | 5MP | IMX490 | 62.5° | GMSL2 |
| oToCAM260ISP-C120M | 5MP | IMX490 | 120° | GMSL2 |
| oToCAM260-N92M | 5MP | IMX490 | 92° | GMSL2 |
| oToCAM261 | 5MP | IMX490 | 120° | GMSL2 |
| oToCAM262 | 5MP | IMX490 | 62.5° | GMSL2 |
前方カメラ
| 型番 | 解析度 | センサー | 視角 | 出力形式 |
|---|---|---|---|---|
| oToCAM165 | 1MP | OV9716 | 122.5° | TVI / Differential |
| oToCAM206-L137T | 1MP | ISX019 | 137° | FPD-Link III |
| oToCAM264ISP-H61M | 2MP / 3MP | IMX390CQV | 63.9° | GMSL2 |
| oToCAM264ISP-N73M | 2MP / 3MP | IMX390CQV | 73° | GMSL2 |
| oToCAM264ISP-C120M | 2MP / 3MP | IMX390CQV | 120.6° | GMSL2 |
| oToCAM264ISP-H61T | 2MP / 3MP | IMX390CQV | 63.9° | FPD-Link III |
| oToCAM264ISP-N73T | 2MP / 3MP | IMX390CQV | 73° | FPD-Link III |
| oToCAM264ISP-C103T | 2MP / 3MP | IMX390CQV | 103° | FPD-Link III |
| oToCAM264ISP-C120T | 2MP / 3MP | IMX390CQV | 120.6° | FPD-Link III |
| oToCAM264-H61M | 2MP / 3MP | IMX390CQV | 63.9° | GMSL2 |
| oToCAM264-N73M | 2MP / 3MP | IMX390CQV | 73° | GMSL2 |
| oToCAM264-C120M | 2MP / 3MP | IMX390CQV | 120.6° | GMSL2 |
| oToCAM264-H61T | 2MP / 3MP | IMX390CQV | 63.9° | FPD-Link III |
| oToCAM264-N73T | 2MP / 3MP | IMX390CQV | 73° | FPD-Link III |
| oToCAM220-C103T | 2MP / 3MP | IMX390CQV | 103° | FPD-Link III |
| oToCAM264-C120T | 2MP / 3MP | IMX390CQV | 120° | FPD-Link III |
| oToCAM222-H61M | 2MP / 3MP | ISX021 | 64° | GMSL2 |
| oToCAM222-C120M | 2MP / 3MP | ISX021 | 120.6° | GMSL2 |
| oToCAM222-H61T | 2MP / 3MP | ISX021 | 64° | FPD-Link III |
| oToCAM222-C103T | 2MP / 3MP | ISX021 | 103° | FPD-Link III |
| oToCAM222-C120T | 2MP / 3MP | ISX021 | 120.6° | FPD-Link III |
| oToCAM223-H61M | 2MP / 3MP | ISX031 | 63.9° | GMSL2 |
| oToCAM223-C120M | 2MP / 3MP | ISX031 | 120.6° | GMSL2 |
| oToCAM260ISP-C30M | 5MP | IMX490 | 30° | GMSL2 |
| oToCAM260ISP-C62M | 5MP | IMX490 | 62.5° | GMSL2 |
| oToCAM260ISP-C120M | 5MP | IMX490 | 120° | GMSL2 |
| oToCAM260 | 5MP | IMX490 | 30° | GMSL2 |
| oToCAM260-N92M | 5MP | IMX490 | 92° | GMSL2 |
| oToCAM261 | 5MP | IMX490 | 120° | GMSL2 |
| oToCAM262 | 5MP | IMX490 | 62.5° | GMSL2 |
側方カメラ
| 型番 | 解析度 | センサー | 視角 | 出力形式 |
|---|---|---|---|---|
| oToCAM165 | 1MP | OV9716 | 122.5° | TVI / Differential |
| oToCAM206-L137T | 1MP | ISX019 | 137° | FPD-Link III |
| oToCAM264ISP-H61M | 2MP / 3MP | IMX390CQV | 63.9° | GMSL2 |
| oToCAM264ISP-N73M | 2MP / 3MP | IMX390CQV | 73° | GMSL2 |
| oToCAM264ISP-C120M | 2MP / 3MP | IMX390CQV | 120.6° | GMSL2 |
| oToCAM264ISP-H61T | 2MP / 3MP | IMX390CQV | 63.9° | FPD-Link III |
| oToCAM264ISP-N73T | 2MP / 3MP | IMX390CQV | 73° | FPD-Link III |
| oToCAM264ISP-C103T | 2MP / 3MP | IMX390CQV | 103° | FPD-Link III |
| oToCAM264ISP-C120T | 2MP / 3MP | IMX390CQV | 120.6° | FPD-Link III |
| oToCAM264-H61M | 2MP / 3MP | IMX390CQV | 63.9° | GMSL2 |
| oToCAM264-N73M | 2MP / 3MP | IMX390CQV | 73° | GMSL2 |
| oToCAM264-C120M | 2MP / 3MP | IMX390CQV | 120.6° | GMSL2 |
| oToCAM264-H61T | 2MP / 3MP | IMX390CQV | 63.9° | FPD-Link III |
| oToCAM264-N73T | 2MP / 3MP | IMX390CQV | 73° | FPD-Link III |
| oToCAM220-C103T | 2MP / 3MP | IMX390CQV | 103° | FPD-Link III |
| oToCAM264-C120T | 2MP / 3MP | IMX390CQV | 120° | FPD-Link III |
| oToCAM222-H61M | 2MP / 3MP | ISX021 | 64° | GMSL2 |
| oToCAM222-C120M | 2MP / 3MP | ISX021 | 120.6° | GMSL2 |
| oToCAM222-H61T | 2MP / 3MP | ISX021 | 64° | FPD-Link III |
| oToCAM222-C103T | 2MP / 3MP | ISX021 | 103° | FPD-Link III |
| oToCAM222-C120T | 2MP / 3MP | ISX021 | 120.6° | FPD-Link III |
| oToCAM223-H61M | 2MP / 3MP | ISX031 | 63.9° | GMSL2 |
| oToCAM223-C120M | 2MP / 3MP | ISX031 | 120.6° | GMSL2 |
| oToCAM260ISP-C62M | 5MP | IMX490 | 62.5° | GMSL2 |
| oToCAM260ISP-C120M | 5MP | IMX490 | 120° | GMSL2 |
| oToCAM260-N92M | 5MP | IMX490 | 92° | GMSL2 |
| oToCAM261 | 5MP | IMX490 | 120° | GMSL2 |
| oToCAM262 | 5MP | IMX490 | 62.5° | GMSL2 |

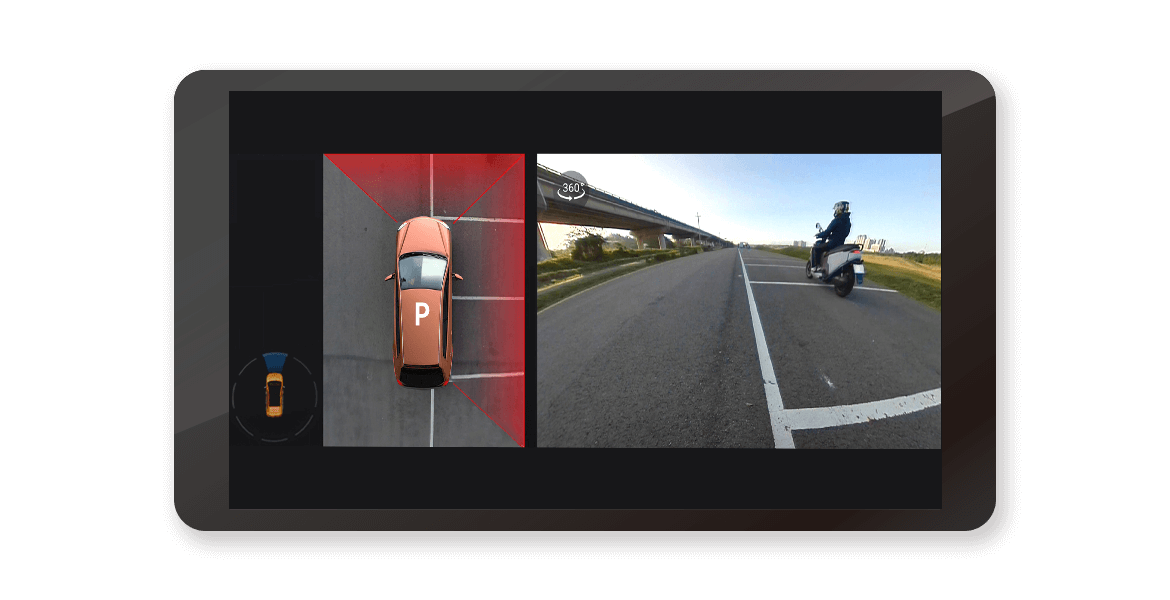

サラウンドカメラ
| 型番 | 解析度 | センサー | 視角 | 出力形式 |
|---|---|---|---|---|
| oToCAM162 | 1MP | ISX019 | 189° | TVI / Differential |
| oToCAM163 | 1MP | OV9716 | 183.6° | TVI / Differential |
| oToCAM204 | 1MP | ISX019 | 189.2° | FPD-Link III |
| oToCAM206 | 1MP | ISX019 | 189° | FPD-Link III |
| oToCAM264ISP-N186M | 2MP / 3MP | IMX390CQV | 186° | GMSL2 |
| oToCAM264ISP-N186T | 2MP / 3MP | IMX390CQV | 186° | FPD-Link III |
| oToCAM264-N186M | 2MP / 3MP | IMX390CQV | 186° | GMSL2 |
| oToCAM264-N186T | 2MP / 3MP | IMX390CQV | 186° | FPD-Link III |
| oToCAM222-S195M | 2MP / 3MP | ISX021 | 195.9° | GMSL2 |
| oToCAM222-S195T | 2MP / 3MP | ISX021 | 195.9° | FPD-Link III |
| oToCAM223-S195M | 2MP / 3MP | ISX031 | 195.9° | GMSL2 |
DMSカメラ
| 型番 | 解析度 | センサー | 視角 | 出力形式 |
|---|---|---|---|---|
| oToCAM251 | 1.5MP | VB56G4A | 31° | FPD-Link III |
| oToCAM251-A34M | 1.5MP | VB56G4A | 34° | GMSL2 |
